Project Planning Guide

Built-in Shelving & Storage Planning

Design custom built-in shelving that holds the weight, fits the space, and looks professional — span calculations, material estimation, and budgeting tools for every step

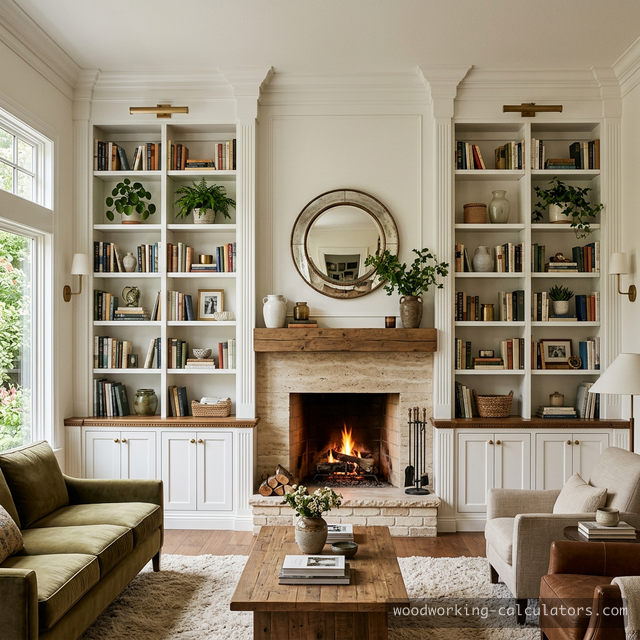

Beautiful built-in bookshelves flanking a fireplace in a living room

Planning Workflow

Follow these steps with the right calculators at each stage

Calculate Shelf Spans & Load Capacity

This is the most critical step — a sagging shelf looks terrible and can be dangerous. The maximum safe span depends on three factors: material (plywood, MDF, solid wood), thickness (3/4 inch vs 1 inch), and expected load. General guidelines: 3/4-inch plywood spans up to about 32 inches for moderate loads, but sags noticeably at 36+ inches with heavy books. Solid oak can span further — up to 42 inches at 3/4 inch. For heavy items like textbooks or vinyl records (which weigh 35-50 lbs per linear foot), keep spans under 28 inches or use 1-inch thick shelves. Our calculator gives you exact maximum spans for your specific setup.

Shelf Span Calculator Wood Density

Estimate Sheet Goods & Solid Wood

A typical floor-to-ceiling built-in bookcase (84 inches tall x 36 inches wide x 12 inches deep) uses about 1.5 to 2 sheets of 3/4-inch plywood for the case, shelves, and back panel. Multiply by the number of units. Face frames add solid wood requirements: figure 1 BF per frame stile (vertical) and 0.5 BF per rail (horizontal). A 3-unit built-in with 6 adjustable shelves each might require 5-6 sheets of plywood plus 15-20 BF of solid hardwood for face frames and trim. Run your cut list through the optimization calculator — the difference between an optimized layout and a naive one can save an entire sheet.

Plywood Sheet Board Feet Cutting Optimization

Plan Hardware & Assembly

Decide between fixed and adjustable shelves — most built-ins use a mix. Adjustable shelves need 5mm shelf pin holes drilled every 32mm (1-1/4 inches), typically in two rows per side. A unit with 6 adjustable shelves needs 48-60 pin holes and 24 shelf pins. For enclosed lower sections, plan drawer slides (side-mount or undermount), door hinges (2 per door under 40 inches, 3 for taller doors), and pulls. Calculate screw quantities: figure 16-20 screws per case for assembly, plus pocket screws for face frame attachment (2 per joint, typically 8-12 per face frame).

Screw & Nail Drawer Slide Cabinet Door

Plan Edge Treatment & Finishing

Every exposed plywood edge needs treatment — iron-on veneer edge banding is the most common solution. Calculate the total linear footage: count all shelf front edges, side edges visible from the front, and any exposed top edges. A 3-unit bookcase with 18 adjustable shelves and visible sides might have 120-160 linear feet of edges to band. For finishing, calculate all visible surfaces — a full-wall built-in can have 200+ square feet of surface area when you count shelf tops, shelf undersides (visible from below), sides, face frames, and crown molding. Budget for 2-3 coats of topcoat.

Edge Banding Wood Finish Sandpaper

Build Your Budget

Built-in shelving is more affordable than most people expect — a full-wall unit typically runs $500-1,500 in materials depending on species and hardware. Break it down: plywood at $45-100/sheet (5-6 sheets = $225-600), solid wood for face frames at $5-10/BF (15-20 BF = $75-200), edge banding ($15-30), shelf pins and hardware ($50-150), finish materials ($40-80), screws and adhesives ($20-30). Add 10% contingency for waste and mistakes. Compare this to the $3,000-8,000 that custom cabinetmakers charge for the same unit — you are saving 60-80% by building it yourself.

Lumber Cost Project Total Cost Material Markup

All Related Calculators

Shelf Span Calculator

Determine the maximum safe span for any shelf by material type, thickness, and expected load. Includes deflection estimates and recommendations for support spacing.

A sagging shelf in a $2,000 built-in looks amateur — verify every span before cutting

Plywood Sheet Calculator

Calculate how many sheets of plywood your built-in needs. Input cases, shelves, backs, and tops to get a precise count with optimized cutting layouts.

Built-ins eat 5-6 sheets of plywood fast — optimizing cuts can save $50-80 per project

Board Feet Calculator

Calculate solid wood needs for face frames, crown molding, base trim, and decorative elements that give built-ins their custom look.

Face frames transform a plywood box into furniture — calculate the stock precisely

Edge Banding Calculator

Calculate total edge banding linear footage for all exposed plywood edges. Includes waste factor for trimming and application errors.

18 shelves x 2 visible edges = 36 edges to band — know your total linear footage

Cutting Optimization Calculator

Optimize your cut list across plywood sheets for minimum waste. Built-in shelving has many same-sized parts — batch cutting saves material and time.

Shelves are all the same size — perfect for optimization that squeezes maximum parts per sheet

Drawer Slide Calculator

Size drawer boxes for built-in lower cabinets. Match box dimensions to your slide type with proper clearances for smooth operation.

Built-in lower drawers are high-traffic — undermount slides are worth the extra cost

Wood Finish Calculator

Calculate finish material for all built-in surfaces. A full-wall unit can have 200+ sq ft of visible surface — most people underestimate by half.

Don't forget shelf undersides — they are visible when you look up from below

Project Total Cost Calculator

Build a complete material budget for your built-in: sheet goods, solid wood, hardware, edge banding, finish, fasteners, and contingency.

DIY built-ins cost $400-1,200 vs $3,000-8,000 for custom — see the full cost breakdown

Need More Tools?

Browse our complete collection of 55+ professional woodworking calculators

Browse Categories View All Tools

Built-in Shelving Tips

Use a shelf pin drilling jig. Drilling 48-60 evenly spaced pin holes freehand is nearly impossible. A commercial jig like a shelf pin drilling guide costs $15-25 and guarantees perfectly aligned holes. It pays for itself on the first project in time savings alone.

Back panels add enormous rigidity. A 1/4-inch plywood back panel, glued and pinned into rabbets, transforms a wobbly plywood box into a rigid structure. Never skip the back panel, even on wall-mounted units — it squares up the case and prevents racking.

Pre-drill shelf pin holes before assembly. It is dramatically easier to drill shelf pin holes on flat side panels before gluing up the case. Mark, drill, and test-fit a pin in every hole before assembly. Trying to drill inside an assembled case is frustrating and inaccurate.

Scribe to the wall, do not shim. Walls are never perfectly flat or plumb. Rather than shimming a built-in (which creates gaps at the top and sides), build it 1/2 inch narrower than the opening and use a scribe strip — a 3/4-inch piece of solid wood that you trim to match the wall's contour with a compass and jigsaw.
