Project Planning Guide

Kitchen Cabinet Project Planning

Plan your entire kitchen cabinet project from measurements to final budget — every step paired with the right calculator so nothing gets missed and every dollar is accounted for

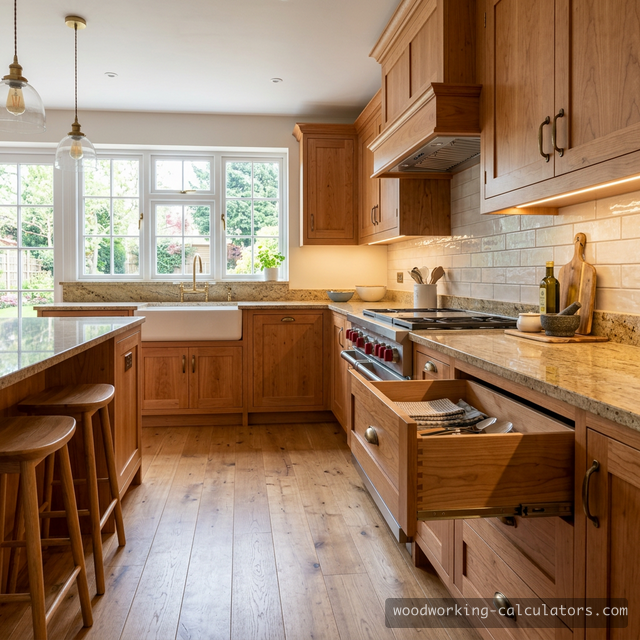

Custom cherry wood kitchen cabinets with dovetailed drawer boxes

Planning Workflow

Follow these steps with the right calculators at each stage

Measure & Estimate Sheet Goods

Start by measuring your kitchen layout wall-by-wall: upper cabinets, base cabinets, pantry units, and any specialty pieces. A standard kitchen uses 8-12 sheets of 3/4 inch plywood for boxes alone. Run your cut list through the cutting optimizer to arrange parts on sheets with minimal waste — the difference between a naive layout and an optimized one can save 2-3 full sheets on a typical kitchen, worth $100-200 in material.

Plywood Sheet Calculator Cutting Optimization Board Feet (face frames)

Size Doors & Drawer Fronts

This is where precision matters most. Calculate door and drawer front dimensions based on your overlay style: full overlay needs 1-1/4 inch overlap on each side, partial overlay uses 1/2 inch, and inset doors require 1/16 inch clearance on all four sides. Get the reveal gaps between adjacent doors consistent at 1/8 inch. For drawers, match box dimensions to your slide type — side-mount slides need 1/2 inch per side, undermount slides have their own clearance specs.

Cabinet Door Calculator Drawer Slide Calculator

Plan Hardware & Edge Banding

Every exposed plywood edge needs banding — that includes shelf fronts, cabinet sides in open layouts, and all door/drawer edges if using slab doors. Calculate linear footage for each thickness (3/4 inch and 1/4 inch are most common). Then estimate screw quantities: figure roughly 20-30 screws per base cabinet and 15-20 per upper cabinet, plus shelf pin holes, hinge screw holes, and slide mounting screws.

Edge Banding Calculator Screw & Nail Calculator Shelf Span Calculator

Plan Your Finish

Kitchen cabinets have enormous surface area when you count both interior and exterior faces. A 20-cabinet kitchen might have over 500 square feet of surface to finish. Calculate stain (if staining), primer, and topcoat quantities separately. Budget for 3 coats of topcoat minimum on high-touch surfaces like doors and drawer fronts. Don't forget sandpaper — plan for 120, 180, and 220 grit between coats, and 320 grit for a rubbed finish.

Wood Finish Calculator Stain Coverage Sandpaper Calculator

Build Comprehensive Budget

Before buying a single sheet of plywood, total everything: sheet goods, solid wood for face frames, hardware (hinges at $3-8 each, slides at $15-40 per pair, pulls at $3-15 each), finish materials, edge banding, fasteners, and adhesives. Add a 10-15% contingency for waste, mistakes, and price fluctuations. A well-planned kitchen cabinet project typically runs $2,000-5,000 in materials for a standard kitchen — knowing this upfront prevents mid-project sticker shock.

Project Total Cost Material Markup Lumber Cost

All Related Calculators

Plywood Sheet Calculator

Calculate exactly how many sheets of plywood your kitchen needs. Input all cabinet box dimensions, shelves, and backs to get a precise sheet count with waste percentage.

Sheet goods are the biggest material cost — knowing the exact count prevents over-ordering

Cutting Optimization Calculator

Arrange your entire cut list on plywood sheets for minimal waste. See optimal layouts that squeeze every usable part from each sheet.

Save 2-3 full sheets on a typical kitchen — that's $100-200 in your pocket

Cabinet Door Calculator

Calculate precise door and drawer front dimensions for full overlay, partial overlay, and inset styles. Accounts for reveals, gaps, and hinge requirements.

A 1/16 inch error multiplied across 30 doors means a full day of rework — get it right first

Drawer Slide Calculator

Size drawer boxes precisely for your slide type. Side-mount, undermount, and center-mount slides all have different clearance requirements.

Mismatched drawer boxes and slides cause drawers that stick, bind, or fall off track

Edge Banding Calculator

Calculate total edge banding in linear feet for all exposed plywood edges. Includes waste factor for trimming and application loss.

Running out mid-job means matching from a different roll — visible color shifts on your cabinets

Shelf Span Calculator

Verify shelf spans by material type, thickness, and expected load. Kitchen shelves carry heavy dishes — sagging shelves look amateur.

A shelf full of dinner plates can weigh 50+ lbs — verify your spans handle the load

Wood Finish Calculator

Calculate finish material for all cabinet surfaces — inside and out. Kitchen cabinets have enormous surface area; most people underestimate by 40%.

500+ sq ft of surface in a typical kitchen — plan for 3 coats on high-touch surfaces

Project Total Cost Calculator

Build a comprehensive material budget with every line item: sheet goods, solid wood, hardware, finish, fasteners, adhesives, and contingency.

Know your total before buying anything — kitchen cabinet projects have 15+ line items that add up fast

Need More Tools?

Browse our complete collection of 55+ professional woodworking calculators

Browse Categories View All Tools

Kitchen Cabinet Planning Tips

Build all boxes first, then all doors. Batch-producing cabinet boxes is far more efficient than building one cabinet at a time. Set up your table saw and dado stack once, cut all dado grooves, then assemble all boxes before moving to door production.

Order 10% extra edge banding. Iron-on edge banding has a learning curve. Your first few applications will use more material as you learn proper heat and trimming technique. Better to have extra than to halt production.

Number every part before assembly. With 20+ cabinet boxes and 30+ doors, mix-ups are inevitable without labeling. Use painter's tape and mark every part with its cabinet number, location (left side, right side, top, bottom), and grain direction.

Pre-finish before assembly when possible. Spraying or brushing finish on flat cabinet parts before assembly gives better coverage, fewer drips, and avoids hard-to-reach inside corners. Mask dado grooves and glue surfaces.
