Professional Guide to Shelf Span Calculation & Load Capacity Analysis
Proper shelf span calculation prevents sagging, failure, and safety hazards while optimizing material usage and cost. Professional shelf design requires understanding beam deflection physics, material strength properties, load distribution, and safety factors. This comprehensive guide covers shelf span formulas, wood species modulus of elasticity (MOE), deflection limits, load capacity calculations, and support optimization strategies for bookshelf, cabinet, and storage applications. Use our shelf span calculator to determine safe spans and load capacities for your specific shelf design.
Shelf Span Physics & Deflection Formulas
Shelf deflection (sag) follows predictable physics based on material properties, dimensions, span length, and load. Understanding these relationships enables accurate span calculations and load capacity predictions.
The Deflection Formula (Uniformly Loaded Beam)
Formula: Deflection = (5 × W × L³) ÷ (384 × E × I)
Where:
- W = Total load in pounds (lb)
- L = Span length in inches (in)
- E = Modulus of Elasticity in psi (material stiffness)
- I = Moment of Inertia in inches⁴ (cross-section resistance to bending)
Key Insight: Deflection increases with the cube of span length (L³). Doubling the span increases deflection by 8 times (2³ = 8). This is why shelf span limitations are critical.
Moment of Inertia Calculation
For Rectangular Cross-Section (Typical Shelf):
Formula: I = (Width × Thickness³) ÷ 12
Moment of Inertia Examples:
3/4" Thick × 12" Wide Shelf:
- I = (12 × 0.75³) ÷ 12
- I = (12 × 0.4219) ÷ 12
- I = 0.4219 in⁴
1.5" Thick × 12" Wide Shelf:
- I = (12 × 1.5³) ÷ 12
- I = (12 × 3.375) ÷ 12
- I = 3.375 in⁴
- Note: Doubling thickness increases I by 8x (2³), dramatically reducing deflection
Acceptable Deflection Limits
Light-Duty Shelving (Display Items):
L/240 (0.5" sag on 10 ft span)
Standard Shelving (Books, General Storage):
L/360 (0.33" sag on 10 ft span)
Heavy-Duty Shelving (Commercial, Industrial):
L/480 (0.25" sag on 10 ft span)
Precision Applications (Cabinet Shelves):
L/600 (0.2" sag on 10 ft span)
Recommended Standard: L/360 for general woodworking applications provides good balance between material efficiency and acceptable visual sag.
Wood Species Strength Properties & MOE Values
Different wood species have vastly different stiffness (MOE) and strength properties. Selecting appropriate species is critical for achieving target span-to-thickness ratios.
Modulus of Elasticity (MOE) by Species
High-Stiffness Hardwoods (Longest Spans):
- Hickory: 2.16 million psi MOE - Strongest North American hardwood
- Hard Maple: 1.83 million psi - Excellent stiffness-to-weight ratio
- White Oak: 1.78 million psi - Good availability and cost
- Red Oak: 1.82 million psi - Popular, affordable, readily available
- Ash: 1.74 million psi - Good stiffness, open grain
Medium-Stiffness Hardwoods (Standard Applications):
- Cherry: 1.49 million psi - Beautiful, moderate strength
- Walnut: 1.68 million psi - Premium appearance, good stiffness
- Birch (Yellow): 2.01 million psi - Excellent value for stiffness
- Beech: 1.72 million psi - Dense, strong, affordable
Lower-Stiffness Softwoods (Shorter Spans or Thicker Material):
- Douglas Fir: 1.95 million psi - Strongest common softwood
- Southern Yellow Pine: 1.79 million psi - Good structural lumber
- White Pine: 1.24 million psi - Soft, easy to work, less stiff
- Spruce: 1.57 million psi - Lightweight, moderate stiffness
- Cedar (Western Red): 1.11 million psi - Lowest stiffness, use thicker
Engineered Materials (Consistent Performance):
- Baltic Birch Plywood (3/4"): ~1.6 million psi effective MOE
- MDF (3/4"): ~0.4 million psi - Poor for spans, needs support
- Particleboard (3/4"): ~0.3 million psi - Not recommended for shelving
Practical Shelf Span Comparison: 3/4" × 12" Shelf, 50 lb Uniform Load
Hickory (MOE 2.16M psi):
- Maximum span for L/360 deflection: 36"
- Deflection at 36" span: 0.10"
Oak (MOE 1.80M psi):
- Maximum span for L/360 deflection: 33"
- Deflection at 36" span: 0.12" (exceeds L/360)
Pine (MOE 1.24M psi):
- Maximum span for L/360 deflection: 27"
- Deflection at 36" span: 0.17" (significant sag)
Conclusion: Species selection significantly impacts achievable span. For 36" spans with 3/4" material, hardwoods are essential.
Load Capacity Calculation & Safety Factors
Load capacity calculations must account for actual loads, load distribution, material stress limits, and safety factors to prevent failure and ensure long-term performance.
Load Types & Distribution
Uniform Load (Most Common):
- Load distributed evenly across entire shelf length
- Examples: Books, folded clothes, boxed items
- Use standard deflection formula: (5WL³) ÷ (384EI)
- Maximum bending moment at center: (WL) ÷ 8
Point Load (Concentrated Weight):
- Load concentrated at single location (typically center)
- Examples: Heavy equipment, appliances, single heavy object
- Deflection formula: (WL³) ÷ (48EI) - Note: 4x more deflection than uniform load!
- Maximum bending moment at load point: (WL) ÷ 4
Typical Shelf Loading Guidelines

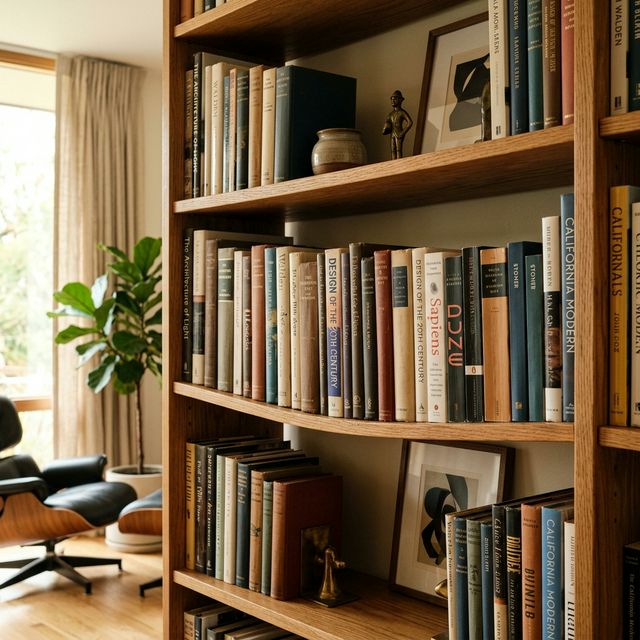

Books (Hardcover):
20-30 lbs per linear foot
Clothing/Linens:
10-15 lbs per linear foot
Kitchen Items (Dishes/Cookware):
25-35 lbs per linear foot
Tools/Hardware:
30-50 lbs per linear foot
Commercial Storage (Warehouse):
50-100+ lbs per linear foot
Safety Factors (Load Multipliers)
Design Load = Actual Expected Load × Safety Factor
- Safety Factor 2.0 (Minimum Acceptable): Residential light-duty, known loads, controlled environment
- Safety Factor 3.0 (Recommended Standard): General residential/commercial, variable loads
- Safety Factor 4.0 (Heavy-Duty): Commercial, public spaces, heavy equipment
- Safety Factor 5.0+ (Critical Applications): Structural, overhead shelving, safety-critical
Load Capacity Example: 3/4" Oak Shelf, 36" Span, 12" Deep
Given:
- Material: Red Oak (MOE 1.82M psi, MOR 14,300 psi)
- Dimensions: 0.75" thick × 12" wide × 36" span
- Target deflection: L/360 = 36"/360 = 0.10"
- Safety factor: 3.0
Step 1: Calculate Moment of Inertia
- I = (12 × 0.75³) ÷ 12 = 0.4219 in⁴
Step 2: Solve for Maximum Load (Deflection-Limited)
- 0.10" = (5 × W × 36³) ÷ (384 × 1,820,000 × 0.4219)
- W = 79.5 lbs (deflection-limited capacity)
Step 3: Apply Safety Factor
- Safe working load = 79.5 ÷ 3.0 = 26.5 lbs
- Practical capacity: ~25-30 lbs for 3 ft shelf
Shelf Support Optimization Strategies:
- Add Center Support: Reduces effective span by 50%, allows 4x more load
- Increase Thickness: Doubling thickness (0.75" to 1.5") reduces deflection by 8x
- Edge Banding: Solid wood front edge adds 30-50% stiffness to plywood shelves
- Vertical Supports: Partition walls every 24-30" dramatically increase capacity

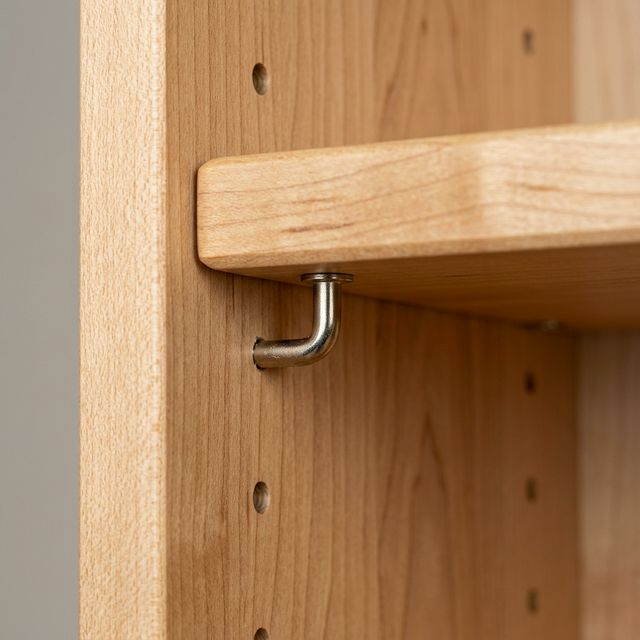

- Adjustable Shelf Pins: Allow repositioning but reduce capacity 10-20% vs. fixed dado
